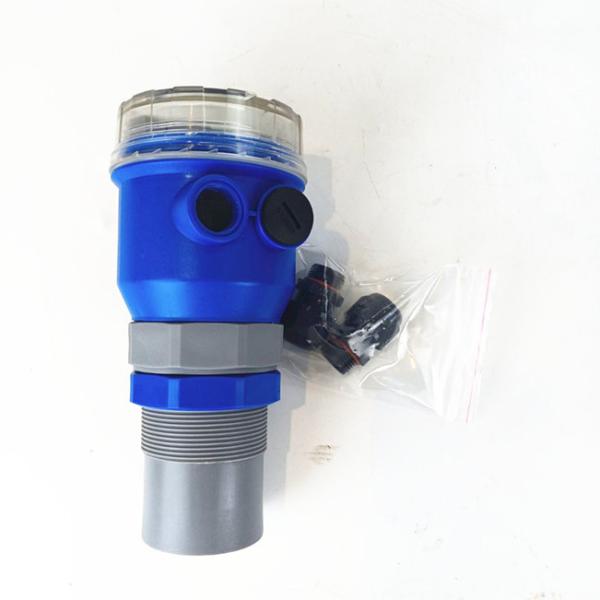

Description Ultrasonic water tank level meter transmitter indicator sensor
Ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.
Specification Ultrasonic water tank level meter transmitter indicator sensor
Range:5,8,10,12,15m
Blind zone:<0.4-0.5m(different for range)
Measure error: 0.25%F.S
Display: LED or LCD
Display resolution:1mm
Frequency::20~350KHz
Power: 12-24VDC
Power consumption:<1.5W
Output (optional):4~20mARL>600Ω(standard)1~5V1~10VRS485 3 NPN 2 relays (AC: 5A250V DC: 10A24V)
Material:ABS
Dimension:Φ92mm×198mm×M60
Electrical interface:M20X1.5
Installation:M60X2 or 61MM
Operating surroundings:normal temperature, normal pressure
Protection degree:IP65(others optional)
| Range |
0-1, 3, 5, 7, 10, 20, max is 50m |
Accuracy |
0.25-0.5% |
| Voltage |
24VDC |
Resolution |
1mm |
| Frequency |
12kHz to 70kHz |
Temp |
-20 to 60 DegC |
| Output |
4-20mA |
Blind area |
0.25m-0.8m |
| Protection |
IP67 |
Emission angle |
6 DegC to12 DegC |
| Installation size |
Φ58mm/G2 thread |
Case material |
ABS or of Tetrafluoroethylene |
| Sensor material |
ABS Engineering plastics |
Keyboard |
Three soft touch keys |
Application Ultrasonic water tank level meter transmitter indicator sensor
Widely used in petroleum, chemical, water treatment, water conservancy, steel, coal, electricity, aerospace and food processing industries such as Diesel Oil Tank ,water tank and so on., for acid, alkali, salt, corrosion, high temperature, explosion-proof and other fields.
Features Ultrasonic water tank level meter transmitter indicator sensor
1, the distance or depth data is directly displayed by the LED digital tube, which is easy to determine on site, and has a temperature display.
2, fully covered design, can be used in the field, can directly measure the liquid.
3, ultrasonic level meter cost-effective, low price
4, the selection of professional ultrasonic small Angle probe, large transmission power, high sensitivity, long life, long measurement distance;
5, the upper and lower limits of any point are set, the inverse value is set, the distance between two points can be set at any point in the range of the corresponding 4-20mA or 0-5V, the sensor can be convenient to install the side mounted ultrasonic level meter debugging, to adapt to various signal connection requirements. Distance accuracy on-line calibration can be used for liquid level control of water, wine, sugar, beverage, etc.
6, the output mode has 4-20MA or 0-5V output, 0-10V output. Digital signal: RS232(three wire)/RS485(choose one, agreed when ordering) secondary indicator instrument for intelligent digital display instrument, has a variety of functions, which the upper and lower limit setting function can make the liquid level and level to achieve automatic control and alarm.
