Flush Diaphragm Pressure Transmitter High Quality Tri Clamp Hygienic Sanitary Pressure Transmitter
Description
Flush diaphragm pressure transmitter, designed for food and pharmaceutical industry, is suitable
for CIP/SIP cleaning and sterilization.Smart compact design, the welded process diaphragm medium parts is made ofhigh quality stainless steel 316L, filling fluid with hygiene standard in line with certification,variety of international standard process connections are available.

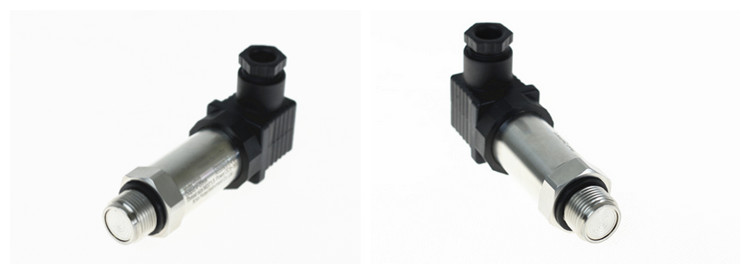

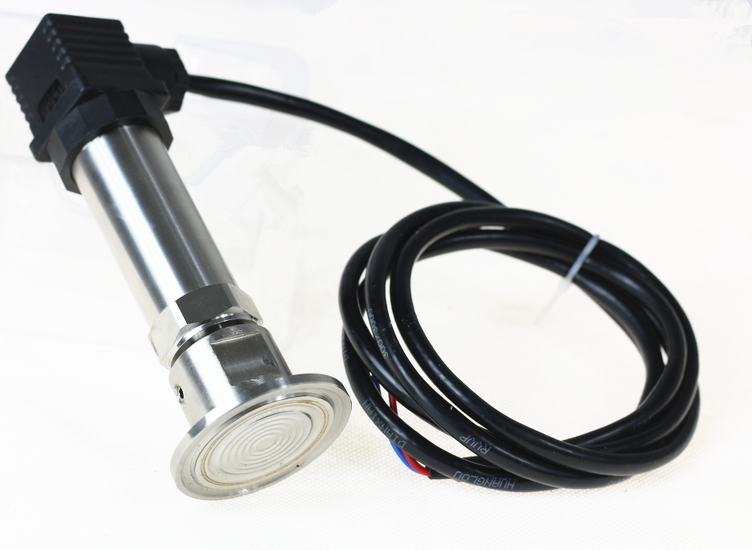

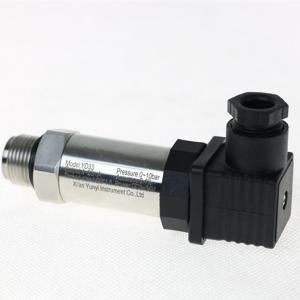

Detailed Images
Specification
Range: 0-35/50/100/200/400/500/600Kpa
0-1/1.6/2.5/4/6/10Mpa
Accuracy: 0.25% FS; 0.5% FS; 1% FS
Output signal: 4-20mA (two-wire), 0-5V; 0-10V (three-wire)
Supply voltage: 24 (12 ~ 36) VDC,
Pressure connection: G1 / 2, M12 * 1.5,or clamp type
Electrical connection: DIN, directly lead , aviation plug-ins
Hysteresis & non-linear & Repeatability: ≤ ± 0.5% FS
Comprehensive error (including temperature drift): ≤ ± 1% FS (-20 ~ 80 ℃)
Long-term stability: ≤ ± 0.25% FS 1 Year
Medium temperature range: -40 ~ 85℃(thread type)-40 ~ 150 ℃(clamp type)
Storage temperature range: -40 ~ 85 ℃
Features
Improved optimized circuit and mounting structure, improved vibration resistance and stability
No cavity measuring diaphragm chamber;
Many industry-standard signal output options;
Wiring for the connector or directly lead;
May request for additional full-scale zero adjustment function;
Various pressure port option;
Applications
Aspects of mechanical engineering applications, such as polyurethane equipment
Medical applications such as pharmaceutical and other
Food Machinery and beverage processing industry
General industrial control field, such as paper, paint, etc.
